Water Separator
0102030405

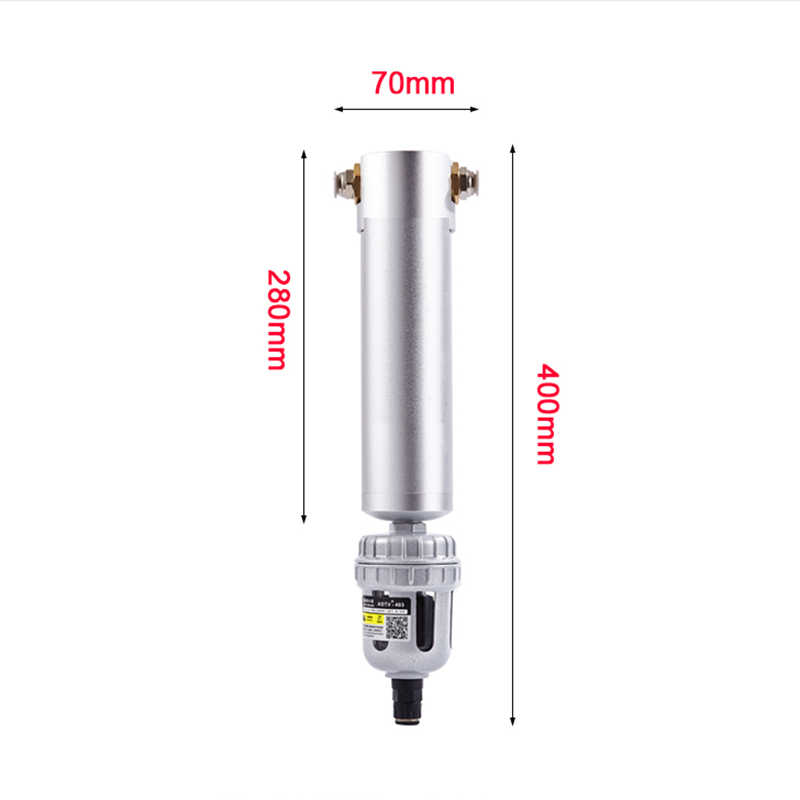

3/8“ Water Separator
Product Parameters
| Part No. | Inlet/Outlet | Flow Rate | Water Storage |
| BOD600SJ |
3/4" |
900l/min/31.8cfm |
280cc |
| BOD900SJ |
3/4" |
1350l/min/47.7cfm |
290cc |
Why choose BOD water separator?
Revolutionary Technology
Cyclone method + Collision Separation Method
Compressed air is normally saturated with moisture in the form of water vapour as well as aerosol, and this needs to be removed to prevent problems further downstream at the point of application. The collision separation method is a kind of technology that provides a constant supply of clean air to pneumatic equipment.
By taking advantage of the difference in specify gravity between air and contaminants (water droplets, oil, dirt, etc), the water separator uses collision and centrifugal force techniques to continually eliminate 99.99% of any moisture, just by its design.
01
7 Jan 2019
Advantages
Particulate removal to 1 micron
No increase in pressure drop caused by blocked filters
No requirement for replacement filter cartridges
Need no electricity and maintenance free
Complete with wall bracket and drain valve

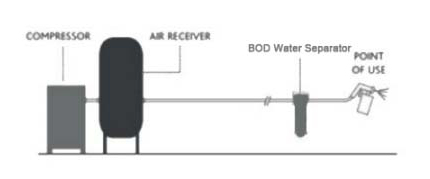

Installation and Usage Instruction
1. Please install vertically.
2. Please install before the various terminal equipment for the best effect.
3. At the installation, please keep the piping distance with the compressor as long.
4. As possible (about 20m or more).
5. If there is no dryer in front of the terminal equipment, put the gas pipe of about.
6. 15-20m into the cold water bucket, which can be effectively cooled.
7. Please confirm the inlet and outlet of the water separator and install it.

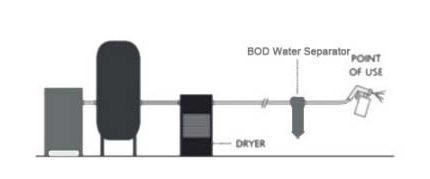

A. Installed as a liquid water filter/separator at the point of use where one is not provided.

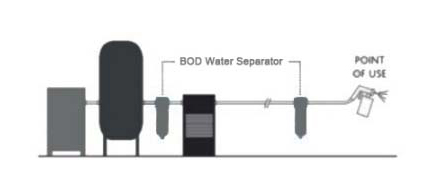

B. Installed as a supplemental liquid water filter/separator when a dehydrator is already installed but liquid water is still present.
C. Installed as a cost effective alternative to existing water separators/coalescers as a single unit upstream of an existing point of use dryer, or both.
C. Installed as a cost effective alternative to existing water separators/coalescers as a single unit upstream of an existing point of use dryer, or both.
