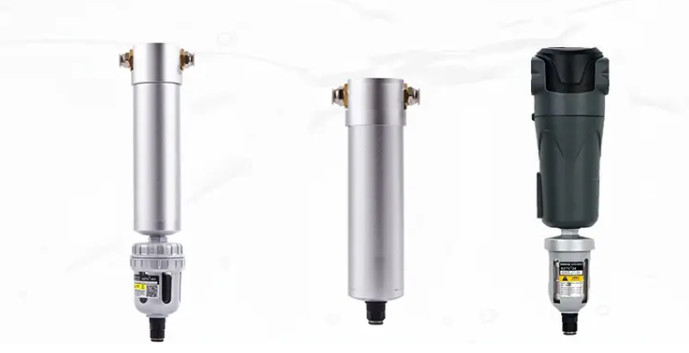

3/8“ Water Separator the Built-In Auto-Drain

Revolutionary Technology

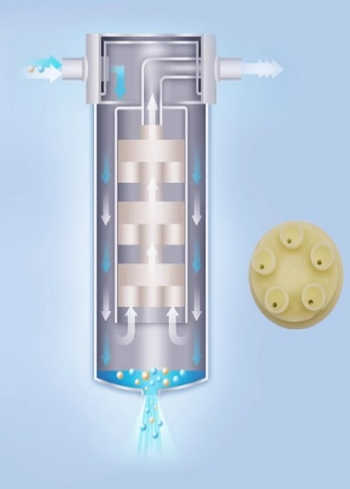

Cyclone method + Collision Separation Method

Compressed air is normally saturated with moisture in the form of water vapour as well as aerosol, and this needs to be removed to prevent problems further downstream at the point of application. The collision separation method is a kind of technology that provides a constant supply of clean air to pneumatic equipment.

By taking advantage of the difference in specify gravity between air and contaminants (water droplets, oil, dirt, etc), the water separator uses collision and centrifugal force techniques to continually eliminate 99.99% of any moisture, just by its design.

1. Please install vertically.

2. Please install before the various terminal equipment for the best effect.

3. At the installation, please keep the piping distance with the compressor as long.

4. As possible (about 20m or more).

5. If there is no dryer in front of the terminal equipment, put the gas pipe of about.

6. 15-20m into the cold water bucket, which can be effectively cooled.

7. Please confirm the inlet and outlet of the water separator and install it.
