Angle Head BT50-BT40M
BT50

Angle Head BT50-BT40M

We provide high-quality angle heads designed to help you efficiently handle milling, drilling, tapping, and other complex machining operations.
Each unit supports multiple spindle interfaces — BT, BBT, SK, CAT, HSK — ensuring smooth integration with your equipment.

Whether you need a standard model or have special machining requirements, we can offer custom-built angle heads tailored to your application.

MOQ: 1 Piece
Warranty: 1 Year

    Parameter

    Specification model: DK90-BT50-BT40M

    Drive shank: BT50

    Other handles: Supported

    Maximum speed: 3500RPM

    Spindle steering: CW-CW

    Transmission ratio: 1:1

    Output handle: BT40

    Maximum torque: 68.Nm

    Through diameter: D136

    Milling head weight: 14.8kg

    Tapping range: M6-M20

    Inventory: standing stock

    Non-standard customization

    Support

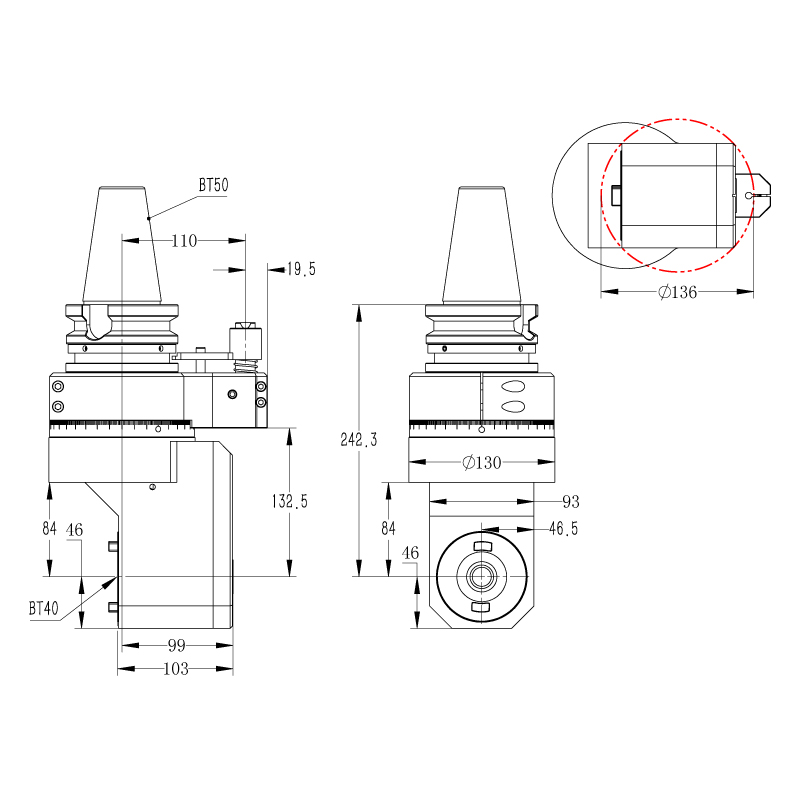

    Technical drawings

    Angle Head DK90-BT50-BT40M1
