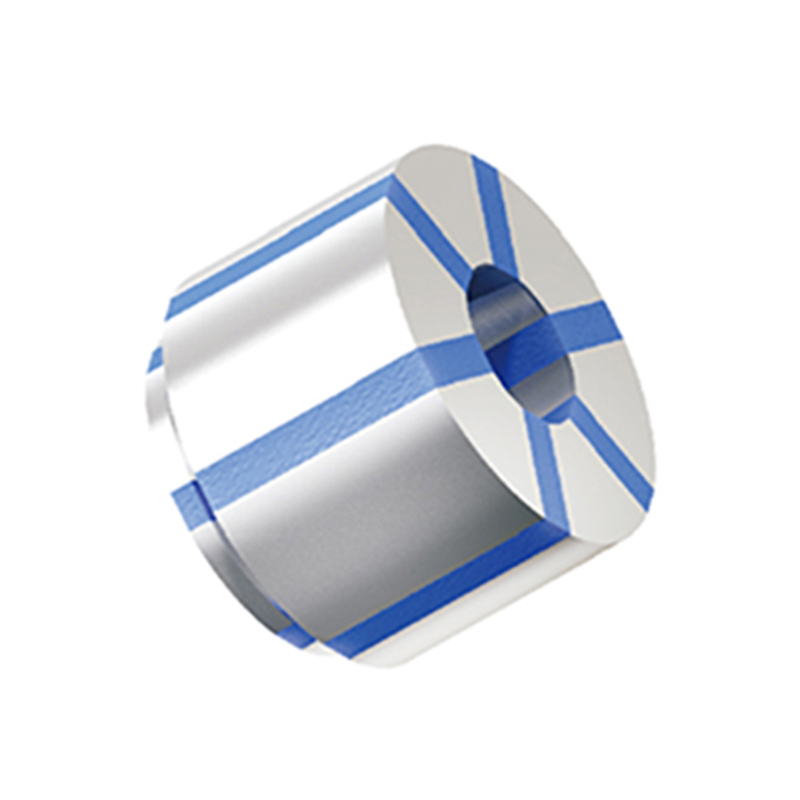

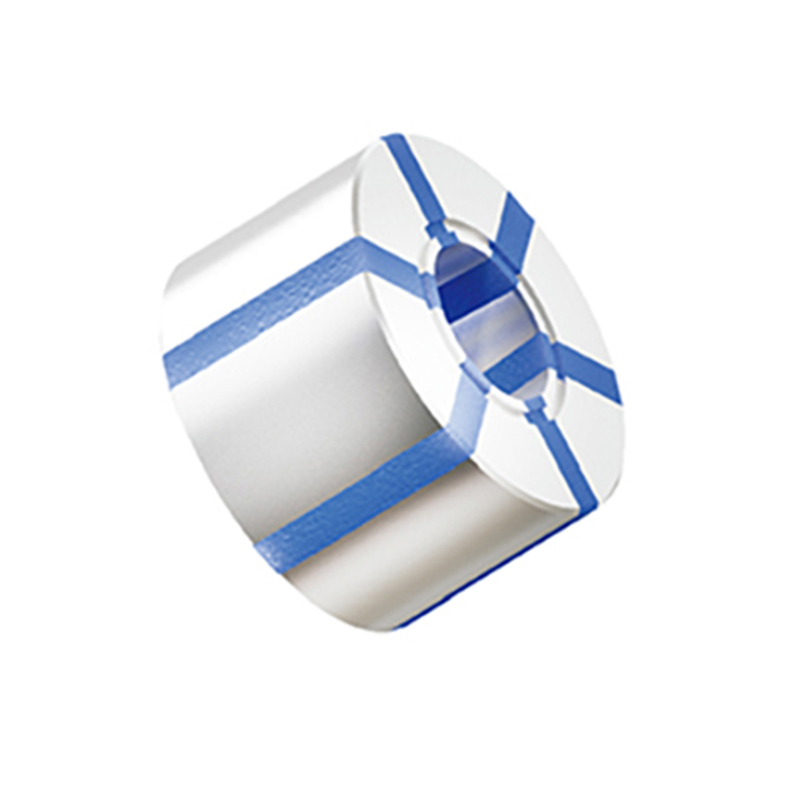

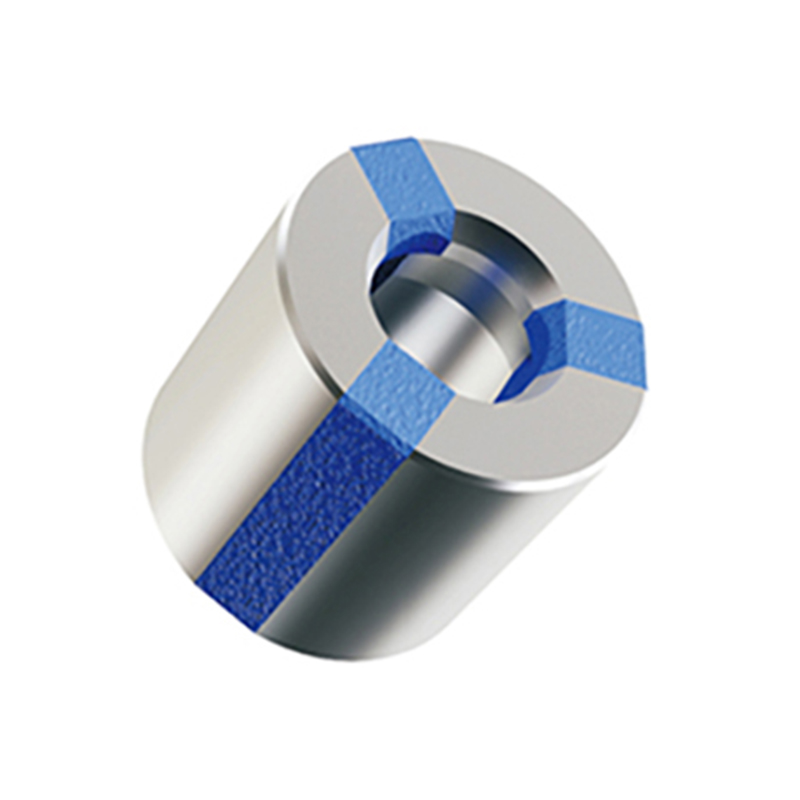

T210 & T211 & T212 Series Rubber-Flex Collets

Unique in design and operation, the collet can generate two to three times the gripping power of a conventional split-steel collet.

Gripping force is uniform and parallel throughout the collet contact length and not concentrated at the nose or back as is frequently in the with split-steel collets. Construction is of durable synthetic rubber compound permanently bonded to hardened steel jaw insert surfaces and through-hole. It is unaffected by heat, coolants and cutting compound and retains its flexibility over a long service life as compared to spring tempered metal designs.

• Parallel jaw insert surfaces exert uniform, accurate gripping force up to three times greater than can be achieved with split-steel collets

• Each collet accepts and precisely centers a wide range of both decimal or metric diameters

(within individual capacity ranges) to speed setups and increase machining productivity

• Durable one-piece construction.. Synthetic rubber retains flexibility and resists deterioration from heat, coolants and cutting compounds

• Steel jaw inserts precision ground (after molding process) to assure maximum gripping accuracy (parallelism)> Hardened for greater wear resistance than split-steel collets

• Each collet bore is held concentric to the O.D. tapers, both front and back, to minimize TIR

• Automatically seals tool O.D. to permit coolant flow through tool reducing wear

• Seals collets and machine spindles to protect from abrasive particles and swarf
